SICECOLD Flake Ice Evaporator Automatic 5 Ton High Reliable 20years Lifespan Flake Ice Machine Evaporator for Seafood
https://www.sicecold.com/Flake-ice-Evaporator-c215469/ SICECOLD Flake Ice Evaporator Automatic 5 Ton High Reliable 20years Lifespan Flake Ice Machine Evaporator for Seafood
As the key part of the complete flake ice machine, the ice flaker evaporator plays important role in making ice.To match the various lce flaker evaporator,you can make different choice about the refigeration units in different refigerant( R22, R404A or R717) by yourselves . Before place the order, let me know which refrigerant you'll choose.
CHARACTERISTICS
*The ice flaker evaporator processed from special alloy with lightness and high heat conduction efficient approximating that of Aluminum
*Every flake ice scraper processed in special designing without any jointing then in high solidity, and can rotate well nearly 8 years
*All components selected is of top-quality and meet configuration need, which makes the evaporator hold less space, and acheive best performance
*The flake ice is glittering and translucent, hard and pure
*lce making and dropping in high speed
Product Introduction
Who would buy a single ice machine evaporator?
1. Professional refrigeration contractor and ice maker manufacturer. Due to relatively low component prices and labor costs, purchasing an evaporator for assembling a modular ice maker will help reduce costs and increase profits.
2. End users who need to replace the old evaporator
3. Factories with central ammonia refrigeration systems, such as large chemical processing plants, seafood processing plants, meat processing plants, etc.
Evaporator production capacity range
Daily production: 500 kg to 60 tons (due to the maximum height limit of containers for overseas customers, the maximum production capacity is 40 tons).
*Classification of Evaporators in Ice Flakes Machines

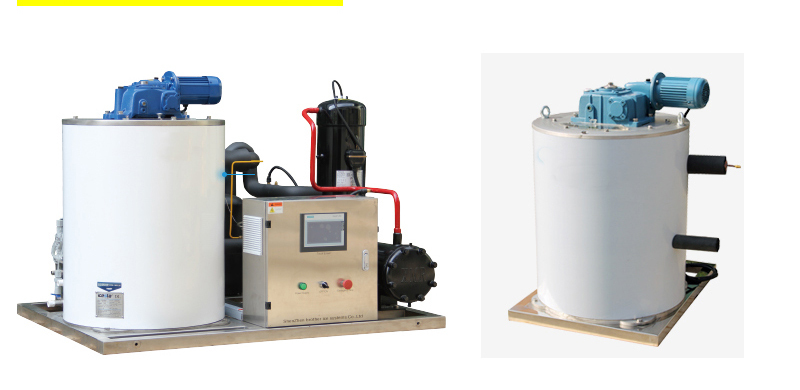

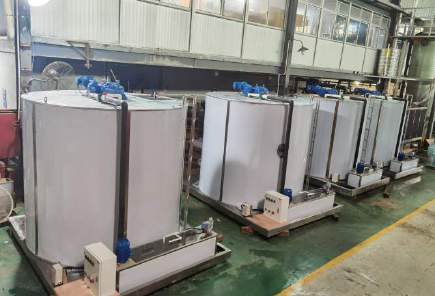

Complete machine/evaporator display
Technical Parameters
*Power supply: 380V/3P/50HZ, 220V/3P/60HZ, 380V/3P/60HZ, 460V/3P/60HZ
*Ambient temperature 35℃
*Water supply Temp 20℃ ( quality)
*Extreme working condition environment: 5℃～40℃, water supply 5℃～30℃
*Refrigerant: R22, R404A, R507A

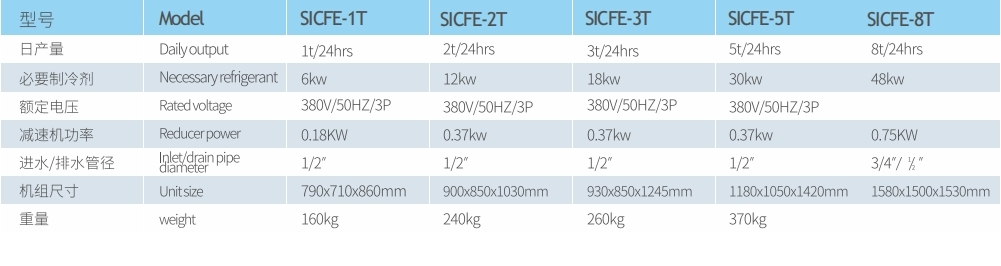

1t,2t,3t,5t,8t/24hrs

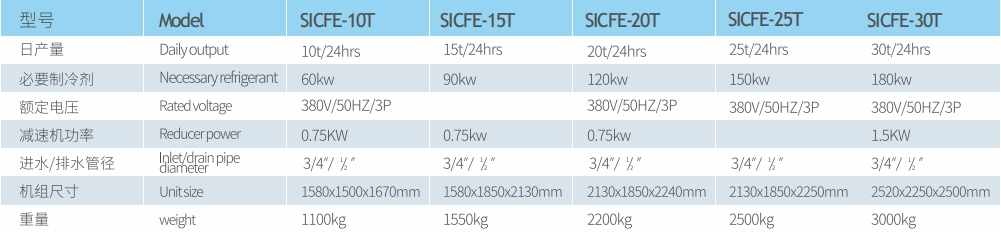

10t,15t,20t,25t,30t/24hrs
Application Industry
More and more Coling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.
Working Principle

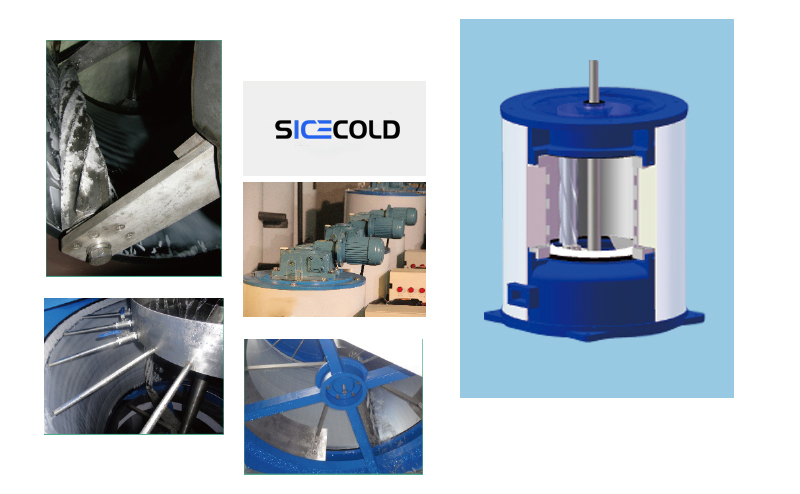

The flake ice evaporator is a key component of the flake ice machine, with a vertical cylindrical structure. It consists of the following main ice making components:
Ice making drum, blades, main shaft, water distribution tray, water blocking plate, etc.
Their movement is coordinated by a reducer, which rotates counterclockwise at low speed. Water is sprayed into the water distribution tray, which evenly distributes the water onto the frozen surface of the evaporator. The formed water film exchanges heat with the low-temperature refrigerant inside the evaporator, forming a thin layer of ice on the freezing surface of the evaporator. The thin ice is crushed into ice sheets and falls into the ice storage box through the ice drop hole of the evaporator.
The unfrozen water returns to the cold water tank of the evaporator and is pumped into the water distribution tray for the next ice making cycle.
characteristic
The selection of raw materials is strict. The quality of stainless steel on the market varies greatly. We use high-quality stainless steel and hold a certificate of qualified materials.
*Strict ERP quality control system
*Advanced welding radiographic testing technology
*Seamless molding of ice skates
*Excellent annealing and stress relief heat treatment process
*Advanced X-ray welding inspection technology
*Carbon steel chrome plating
*Strictly design the number of refrigerant chambers and circuits
*Clean the refrigerant chamber multiple times
*The evaporator never deforms
*No refrigerant leakage
*Smooth ice scraping

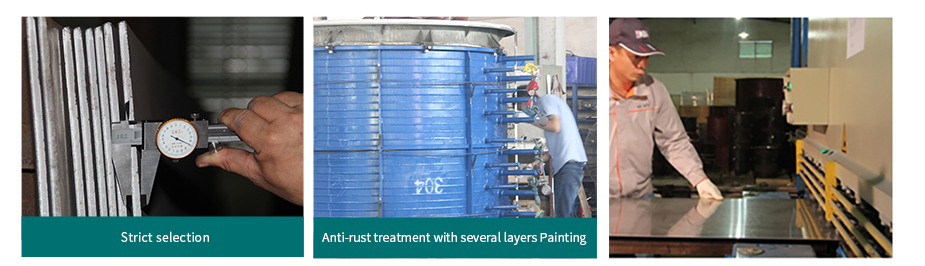

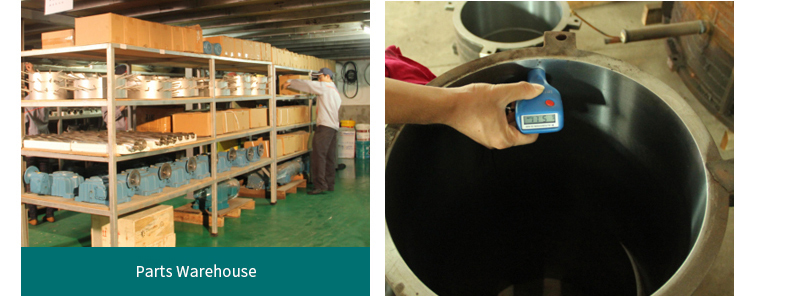

SICECOLD first-class craftsmanship
Key points for quality control of flake ice machine
Pontos-chave de controlo de qualidade de uma máquina de gelo em flocos
1. Evaporator processing technology
*The evaporator adopts a spiral refrigerant chamber design, which ensures that the refrigerant oil mixed in the refrigerant gas returns to the compressor compared to other designs. At the same time, the dry evaporation method of SICECOLD evaporator can eliminate the impact damage of the compressor.
*After proper welding, the refrigerant chamber of the evaporator will undergo annealing and stress relief heat treatment, effectively eliminating the hidden danger of evaporator deformation.
*Chromium plating on the freezing surface of the evaporator (limited to carbon steel) can improve hardness and wear resistance.
2. Ice blade processing and handling
Maquinaria e Processamento da Lâmina de Gelo
Ice skates are made by processing a single stainless steel rod into a spiral scraper. Compared to welding ice skates, it has higher strength. SICECOLD ice skates do not experience internal stress caused by welding. The spiral shaped ice blade evenly acts on the frozen surface of the evaporator, significantly extending the service life of the ice blade and evaporator.

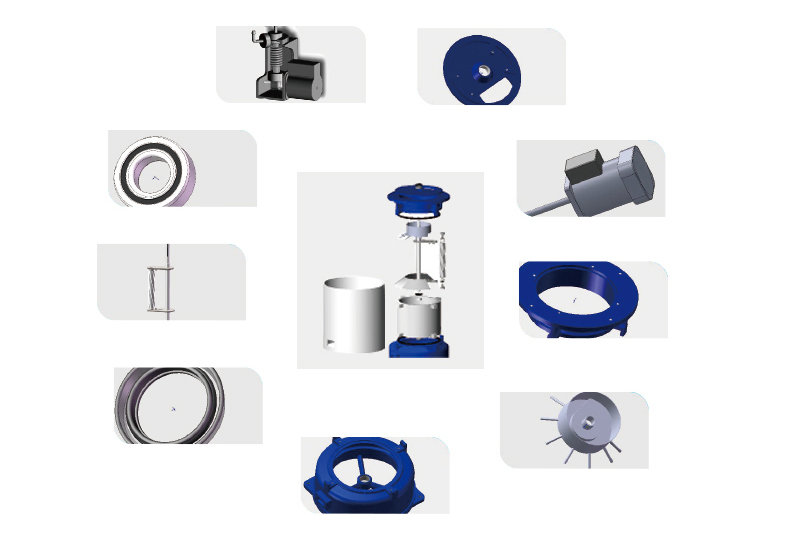

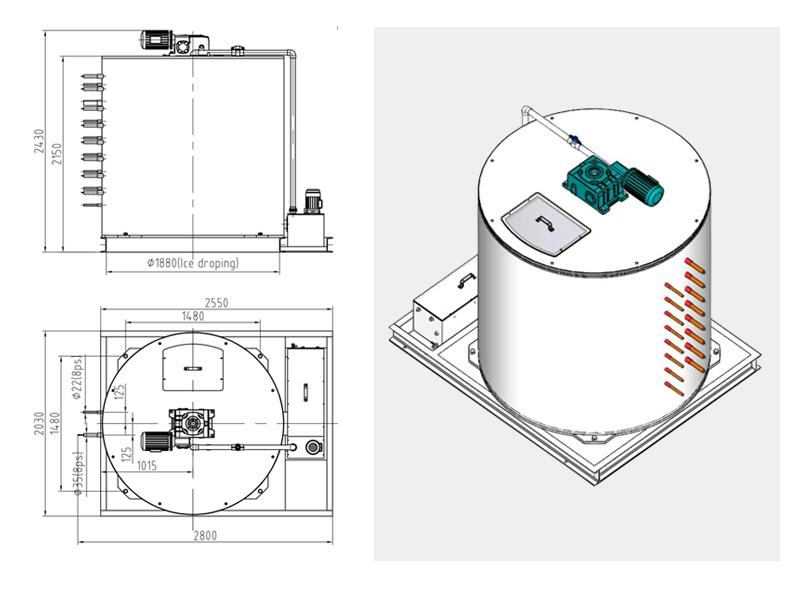

Drawing Display
The SICECOLD team utilizes over 20 years of experience in refrigeration and ice making to continuously innovate products, resulting in higher efficiency, more stable operation, and smoother de icing and ice making.

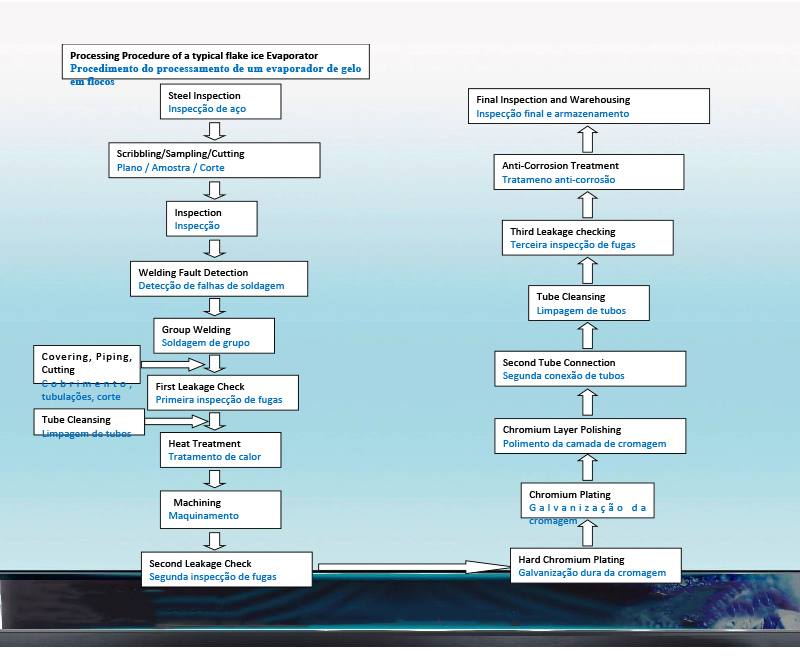

Processing Flow Chart
