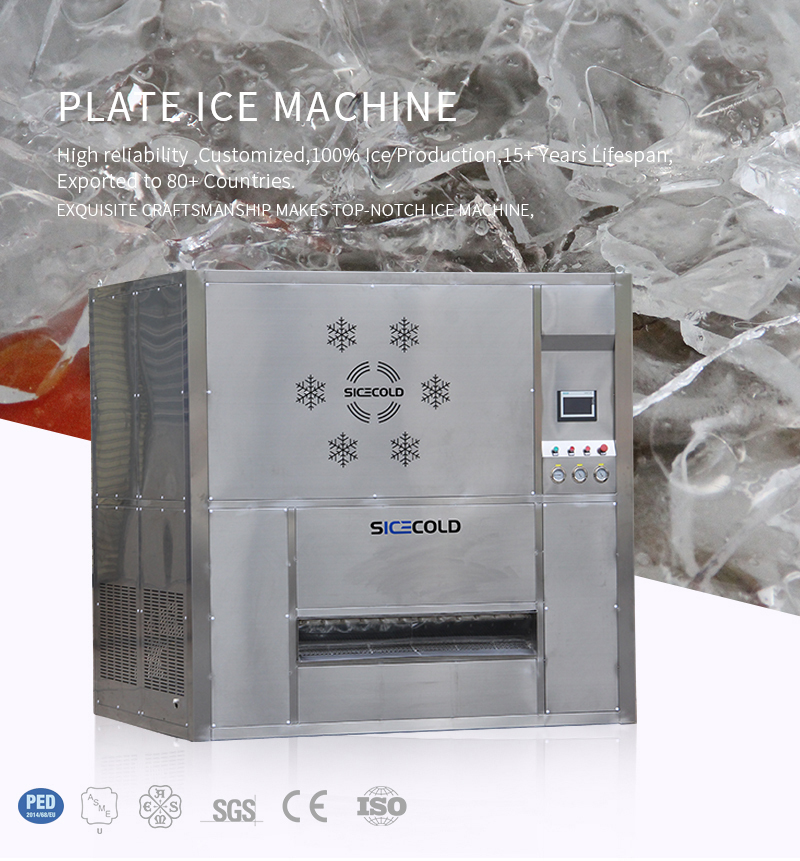

Plate ice machine high relible Long Service Life 5 ton ice plate machine
https://www.sicecold.com/Plate-ice-machine-c215475/ Plate ice machine high relible Long Service Life 5 ton ice plate machine
Plate ice machine is widely used in food refrigeration, seafood preservation, medical pharmacy and industrial cooling. Compared with traditional ice making methods, plate ice machine has higher efficiency and better ice quality, and has become an important equipment in the modern ice making industry.
Working principle
The plate ice machine forms thin and transparent ice plates by cooling water to the freezing point. Its working principle mainly includes the following steps:
1. Water supply: Introduce clean tap water or treated water into the machine.
2. Cooling system: Refrigerant flows in the cooling pipe inside the machine, and the water is cooled around the pipe, gradually forming an ice layer.
3. Ice layer formation: When the ice layer reaches the set thickness, the machine will automatically stop cooling.
4. Ice peeling: The ice plate is peeled off by a mechanical device and automatically cut into the required size.

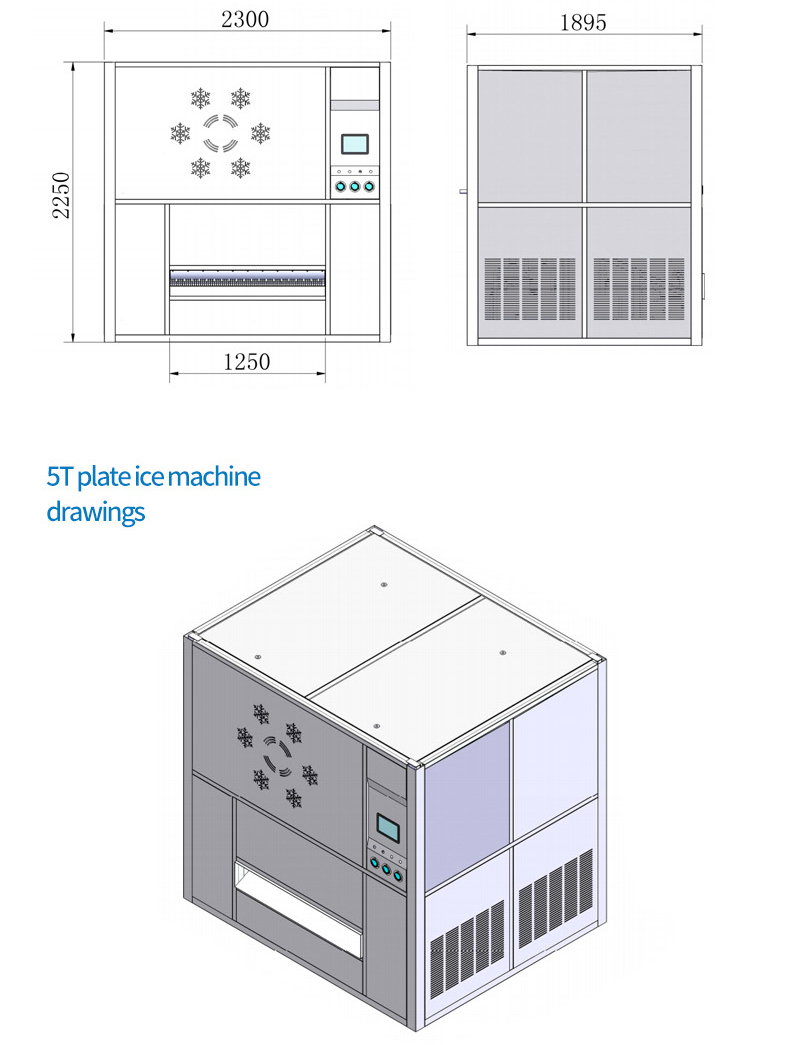

Drawing Display
The SICECOLD team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.
Application field
1. Food industry: Plate ice is often used to preserve seafood such as fish and shrimp, and to display food in large restaurants and supermarkets.
2. Pharmaceutical industry: In the transportation and storage of medicines, plate ice can maintain temperature and ensure the effectiveness of medicines.
3. Industrial cooling: In the chemical, plastic and other industries, plate ice is used to cool equipment to prevent overheating.
4. Cold chain logistics: In cold chain transportation, plate ice can provide effective temperature control to ensure the quality of goods during transportation.
Advantages
1. High efficiency: The ice making speed is fast and suitable for large-scale production needs.
2. Excellent ice quality: The ice produced is transparent and free of impurities, which can effectively maintain the freshness of items.
3. Energy saving and environmental protection: The use of advanced refrigeration technology and energy-saving design reduces energy consumption and reduces the impact on the environment.

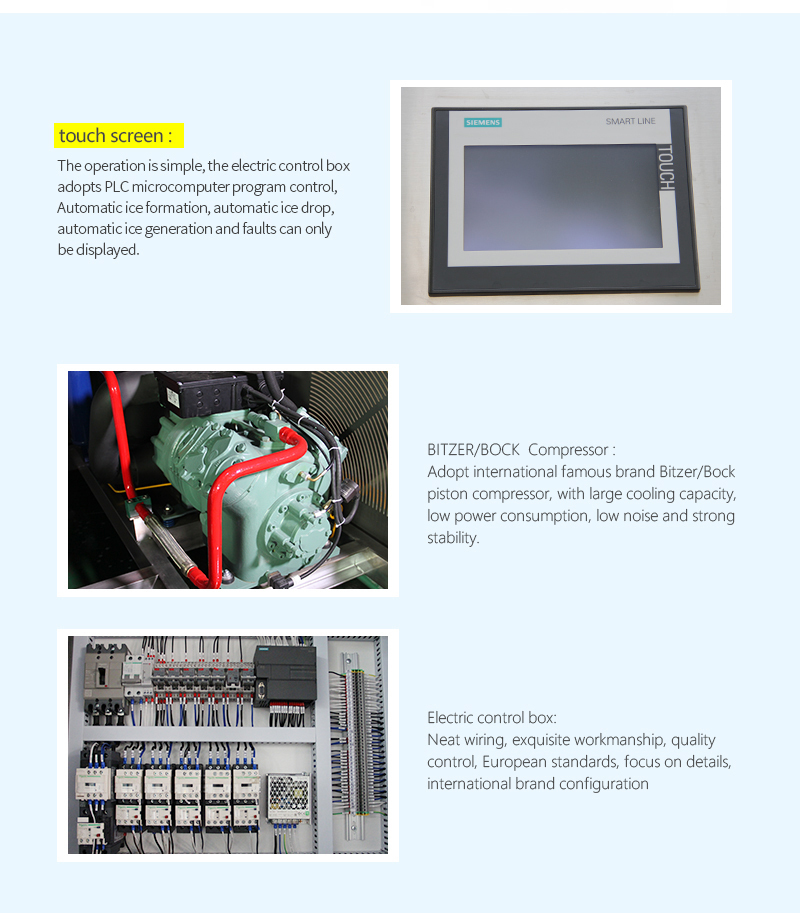

4. Easy to operate: Equipped with an intelligent control system, the user only needs to set the parameters and the machine can run automatically.

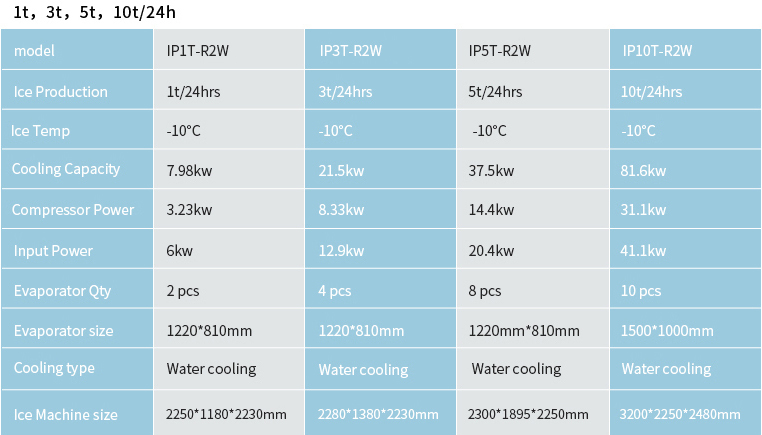

Technical Parameters
*Power supply: 380V/3P/50HZ,220V/3P/60HZ,380V/3P/60HZ,460V/3P/60HZ
*Ambient temperature 35°C
* Water supply Temp 20°C( quality)
*Extreme working condition environment: 5°C~40°C, water supply 5°C~30°C
*Refrigerant: R22,R404A, R507A
